Ohm's Law is a formula used to calculate the relationship between voltage, current and resistance in an electrical circuit.. How to Calculate Ohm's Law. To students of electronics, Ohm's Law (E = IR) is as fundamentally important as Einstein's Relativity equation (E = mc²) is to physicists.
To find the amount of current, you can use the triangle above to the formula for current: I = V/R. Now you can calculate the current by using the voltage and the resistance. Just type it into your calculator to get the result: I = 12 V / 600 Ω I = 0.02 A = 20 mA. So the current in the circuit is 20 mA. Example: Choosing a Resistor for an LED
The relationship between voltage, current, and resistance is defined by Ohm's Law: V = I × R. Where: V = Voltage (volts) I = Current (amperes) R = Resistance (ohms) How Ohm's Law Works. If you increase the voltage, the current will increase (if resistance stays the same). If you increase the resistance, the current will decrease (if voltage ...
The amount of current in a circuit depends on the amount of voltage and the amount of resistance in the circuit to oppose current flow. Just like voltage, resistance is a quantity relative between two points. For this reason, the quantities of voltage and resistance are often stated as being “between” or “across” two points in a circuit.
The current flowing through the circuit is I = 2A and the resistance offered by the circuit to the flow of current is R = 5ohms. Then the voltage drop across the circuit shall be 2A X 5 ohms = 10V. Similarly, If the voltage across the resistor is V = 20V and the current flowing through it is I = 10A, then the value of resistance is 20V/10A = 2ohms.
In the Ohm’s Law formula, V represents voltage, I represents current, and R represents resistance. Georg Simon Ohm created Ohm’s Law in a paper published in 1827, [6] well before voltage, current, and resistance units were defined.

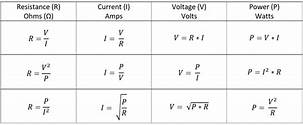

The PIE chart is similar to the voltage, current, and resistance formula wheel. Power is measured in watts and is defined as: the rate at which work is done when one ampere (A) of current flows through an electrical potential difference of one volt (V) Formula Wheel with Ohm’s Law and PIE.
Ohm’s law is one of the fundamental principles of Electrical and Electronics Engineering which relates current flow across resistive circuits.Ohm’s law formula sheet has all formulas, useful equations and 12 different manipulations of Ohm’s law that are used in circuit analysis. Let’s start with the basic formula first: V = IR … (Mathematical form of Ohm’s law)
A larger pipe (lower resistance) allows more water (current) to flow under the same pressure (voltage). The Ohm’s Law Formula. Ohm’s Law formula is essential for calculating the key electrical quantities in a circuit. It can be expressed with the following primary formulas: Voltage (V) = Current (I) × Resistance (R)
The formula reveals that as voltage increases, current increases, assuming resistance is constant. Conversely, if resistance increases, current decreases for a given voltage. This law is essential for understanding and predicting the behavior of electrical circuits.
Recall the Ohm's Law formula: V = IR, where V is voltage, I is current, and R is resistance. In this example, we know the voltage (V = 12 V) and the current (I = 2 A), and we want to find the resistance (R). Rearrange the formula to solve for resistance: R = V / I. Now, substitute the known values into the formula: R = 12 V / 2 A. R = 6 ohms (Ω)
Identify the Known Values: For instance, if you know the voltage supplied and the resistance, you can calculate the current. Select the Correct Formula: Use I = V / R if you need to find the current; use V = I × R for voltage; or R = V / I for resistance. Substitute and Solve: Insert the known values into the formula and perform the calculation.
Learn the basics of voltage, current, power, and energy in electrical engineering. Prasun Barua PrasunBarua.com: A platform on science, tech, & engineering with tutorials, trends, and expert insights. ... complete with formulas, units, practical analogies, and examples. ⚡ 1. Electric Charge and Current
From this formula, we can see that the voltage is the product of current and resistance. The voltage drop across a resistance, or circuit, will vary directly with either the current or resistance. For example, if a current through a resistor is doubled, the voltage drop (IR drop) will double.
Georg Simon Ohm discovered Ohms law when he described the mathematical relationship that occurred between voltage, current and resistance in electrical circuits. Ohms law was named after Georg Ohm who was a German physicist. Georg Ohm lived from 1789-1854. It was published in his paper in 1827 which was called “The Galvanic Circuit Investigated Mathematically”.
